log periodic antenna
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
  |
 |
|

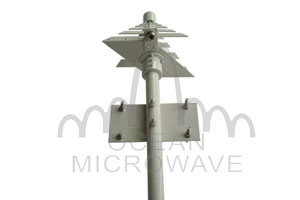

OLP series antennas are lightweight, medium gain log periodic dipoles designed to transmit and receive signals over a broadband. These antennas are characLOterized by a high front-to-back ratio, and power gain at all frequency in the band. High quality aluminium construction for a lightweight, high strength antenna that will provide years of trouble-free operation.

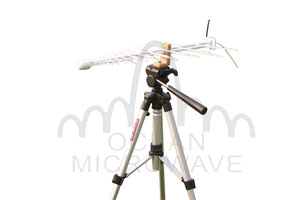

ALL OLP antennas are linearly polarized. Polarization adjustment is possible, in any plane, OLP series antennas operating below 300MHz are also supplied in a kit form for compactness in packaging and ease of transportation. Antennas in the kit form assemble easily with minimum tool requirements. Standard tripod will be provided according to customers' requirement, the joint is universal.
|
PN.
|
Frequency
(MHz)
|
VSWR
(Typ.)
|
Gain (Typ)
(dBi)
|
3dB beamwidth
（degree）
|
Polarization
|
Connector
|
Size
（L×W）mm
|
Datasheet |
|
Log periodic antenna
LP1050
|
100-500
|
2:1
|
6
|
120-50
|
Linear
|
N
|
2600×1800
|
|
|
Log periodic antenna
OLP1080
|
100-800
|
3:1
|
6
|
120-50
|
Linear
|
N
|
2600×1800
|
|
|
Log periodic antenna
OLP10100
|
100-1000
|
3:1
|
6
|
120-50
|
Linear
|
N
|
2600×1800
|
|
|
Log periodic antenna
OLP1350
|
130-500
|
3:1
|
6
|
120-50
|
Linear
|
N
|
2300×1350
|
|
|
Log periodic antenna
OLP18100
|
180-1000
|
3:1
|
6
|
120-50
|
Linear
|
N
|
1300×900
|
|
|
Log periodic antenna
OLP18200
|
180-2000
|
3:1
|
6
|
120-50
|
Linear |
N
|
1300×900
|
|
|
Log periodic antenna
OLP2080
|
200-800
|
3:1
|
7
|
120-50
|
Linear |
N
|
1250×860
|
|
|
Log periodic antenna
OLP20200
|
200-2000
|
3:1
|
7
|
120-50
|
Linear |
N
|
1250×860
|
|
|
Log periodic antenna
OLP25100
|
250-1000
|
2.5:1
|
7
|
120-50
|
Linear |
N
|
1055×680
|
|
|
Log periodic antenna
OLP30200
|
300-2000
|
3:1
|
6
|
120-50
|
Linear |
N
|
900×560
|
|
|
Log periodic antenna
OLP40200
|
400-2000
|
2.5:1
|
6
|
120-50
|
Linear |
N
|
800×410
|
|
|
Log periodic antenna
OLPS50300
|
500-3000
|
3:1
|
6
|
120-50
|
Linear |
N
|
600×350
|
|
|
Log periodic antenna
OLP80500
|
800～5000
|
3:1
|
6
|
120-50
|
Linear |
N
|
500×320
|
|
|
Log periodic antenna
OLP100400
|
1000-4000
|
3:1
|
6
|
120-50
|
Linear |
N
|
450×220
|
|
|
Log periodic antenna
OLP100600
|
1000-6000
|
3:1
|
6
|
120-50
|
Linear |
N
|
450×220
|
|
|
