BROADBAND HORN ANTENNA |
|
|---|---|

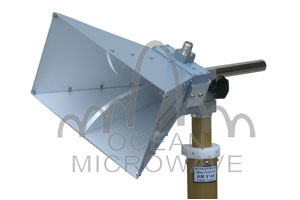

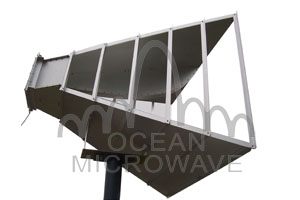

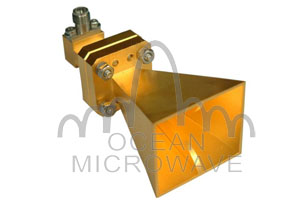

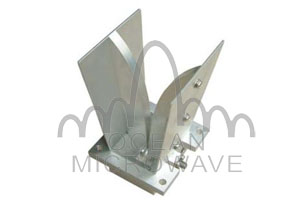

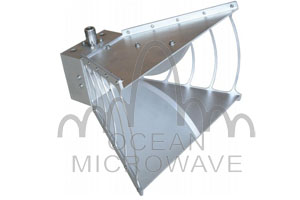

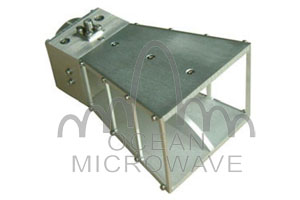

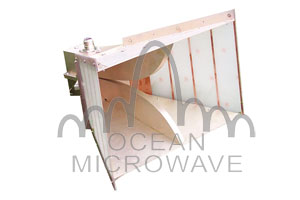

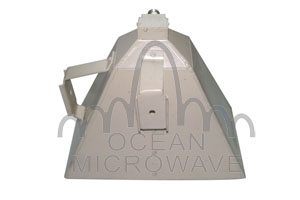

The double-ridge waveguide horns are linearly polarized antennas ideally suited for broadband applications.Double-ridged waveguide antennas are constructed of lightweight corrosion-resistant aluminum and fiberglass, providing years of trouble-free indoor and outdoor service.
|
 |
 |
 |
|---|---|---|
 |
 |
 |
 |
 |
 |
| Copyright（C）2005-2009 Oceanmicrowave Tel：+86-10-60290088 E-mail:sales@oceanmicrowave.com |
Model |
Frequency (GHz) |
Pol. |
Gain (dBi)
(Typ. ) |
3dB beamwidth
(Typ. ) |
VSWR ( Typ.) |
Connector |
Size (mm) |
Datasheet |
Broad band horn antenna OBH220 |
0.2-2.0 |
Linear |
5-12 |
80º～30º |
2:1 |
N-F |
1000 x 970 x 690 |
 |
Broad band horn antenna OBH440 |
0.4～4 |
Linear |
6-13 |
80º～30º |
2:1 |
N-F |
660×420×510 |
|
Broad band horn antenna OBH530 |
0.5-3.0 |
Linear |
6～12 |
80º～30º |
2:1 |
N/SMA |
500 x 350 x 440 |
|
Broad band horn antenna OBH660 |
0.6-6.0 |
Linear |
7～13 |
80º～30º |
2:1 |
N/SMA |
440 x 290 x 350 |
|
Broad band horn antenna OBH880 |
0.8-8.0 |
Linear |
6-13 |
80º～30º |
2:1 |
N/SMA |
294 x 194 x 262 |
|
Broad band horn antenna OBH975 |
0.9-7.5 |
Linear |
7～14.5 |
70º～25º |
2:1 |
N/SMA |
300 x 205 x 255 |
|
Broad band horn antenna OBH1025 |
1.0-2.5 |
Linear |
14.5-19 |
20º～5º |
2:1 |
N/SMA |
670×470×600 |
|
Broad band horn antenna OBH1030 |
1.0-3.0 |
Linear |
10～15 |
40º～15º |
2:1 |
N/SMA |
440×290×350 |
|
Broad band horn antenna OBH1080 |
1.0-8.0 |
Linear |
6～13 |
80º～30º |
2:1 |
N/SMA |
241 x 160 x 204 |
|
Broad band horn antenna OBH1080-A |
1.0-8.0 |
Linear |
-5～13 |
200º～30º |
2.5:1 |
N/SMA |
90×82×150 |
|
Broad band horn antenna OBH10125 |
1.0-12.5 |
Linear |
6～14.5 |
80º～30º |
2:1 |
N/SMA |
241 x 160 x 204 |
|
Broad band horn antenna OBH10180 |
1.0-18.0 |
Linear |
6～14.5 |
80º～20º |
2.5:1 |
N/SMA |
241 x 160 x 204 |
|
Broad band horn antenna OBH2060A |
2.0-6.0 |
Linear |
9～13 |
50º～15º |
2:1 |
N/SMA |
241×160×204 |
|
Broad band horn antenna OBH2060B |
2.0-6.0 |
Linear |
12～17 |
30º～10º |
2:1 |
N-F |
400×320×450 |
|
Broad band horn antenna OBH2080 |
2.0-8.0 |
Linear |
10～14 |
60º～10º |
2:1 |
N/SMA |
241 x 160 x 204 |
|
Broad band horn antenna OBH20180A |
2.0-18 |
Linear |
8～13 |
80º～20º |
2:1 |
N/SMA |
180×140×170 |
|
Broad band horn antenna OBH20180B |
2.0-18.0 |
Linear |
6～15 |
70º～20º |
2:1 |
N/SMA |
105×80×130 |
|
Broad band horn antenna OBH20245 |
2.0-24.5 |
Linear |
6～17 |
120º～10º |
2.5:1 |
SMA-F |
85×65×130 |
|
Broad band horn antenna OBH20265 |
2.0-26.5 |
Linear |
5～16 |
80º～10º |
2.5:1 |
SMA-F |
140×120×202 |
|
Broad band horn antenna OBH75180 |
7.5-18.0 |
Linear |
20～22 |
20º～5º |
2:1 |
SMA-F |
160×120×300 |
|
Broad band horn antenna OBH80180 |
8.0-18.0 |
Linear |
10～20 |
70º～10º |
2：1 |
SMA-F |
90×70×140 |
|
Broad band horn antenna OBH180400 |
18.0-40.0 |
Linear |
14～19 |
40º～10º |
2:1 |
K(2.92mm)-F |
34×28×75 |
|
