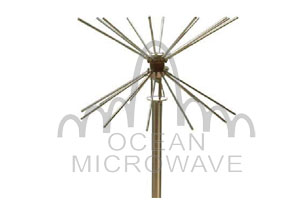

BICONICAL ANTENNA |
|
|---|---|
Features |
|
� 30 MHz to 26.5 GHz frequency range
|
 |
 |
 |
|---|
Copyright（C）2005-2009 Oceanmicrowave Tel：+86-10-60290088  E-mail:sales@oceanmicrowave.com |
PN. |
Frequency （MHz） |
Polarization |
VSWR |
Gain |
Power |
Connector |
Size(mm) |
Datasheet |
Biconical antenna OBC1040 |
100-400 |
linear |
2.5:1 |
0～2 |
300W |
N |
￠1180×800 |
 |
Biconical antenna OBC20300 |
200-3000 |
linear |
2.5:1 |
0～2 |
200W |
N |
￠650×400 |
|
Biconical antenna OBC50300 |
500-3000 |
linear |
2：1 |
0～2 |
100W |
N |
￠280×200 |
|
Biconical antenna OBC100300 |
1000-3000 |
linear |
2：1 |
0～2 |
100W |
N |
￠180×120 |
|
Biconical antenna OBC2001800 |
2000-18000 |
linear |
2：1 |
0～2 |
50W |
SMA |
￠123×82 |
|
Biconical antenna OBC2002650 |
2000-26500 |
linear |
2：1 |
0～2 |
50W |
SMA |
￠123×82 |
|
Biconical antenna OBC3001500 |
3000-15000 |
linear |
2.5：1 |
0～2 |
50W |
SMA |
￠65×42 |
|
Biconical antenna OBC14002650 |
14000-26500 |
linear |
2.5：1 |
0～2 |
50W |
SMA |
￠65×42 |
|
