LOG PERIODIC ANTENNA

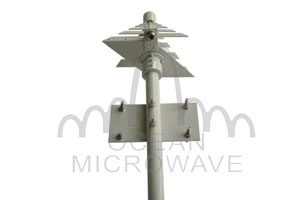

	OLP series antennas are lightweight, medium gain log periodic dipoles designed to transmit and receive signals over a broadband. These antennas are characLOterized by a high front-to-back ratio, and power gain at all frequency in the band. High quality aluminium construction for a lightweight, high strength antenna that will provide years of trouble-free operation. ALL OLP antennas are linearly polarized. Polarization adjustment is possible, in any plane, OLP series antennas operating below 300MHz are also supplied in a kit form for compactness in packaging and ease of transportation. Antennas in the kit form assemble easily with minimum tool requirements. Standard tripod will be provided according to customers' requirement, the joint is universal.

LOG PERIODIC ANTENNA

OLP series antennas are lightweight, medium gain log periodic dipoles designed to transmit and receive signals over a broadband. These antennas are characLOterized by a high front-to-back ratio, and power gain at all frequency in the band. High quality aluminium construction for a lightweight, high strength antenna that will provide years of trouble-free operation.

ALL OLP antennas are linearly polarized. Polarization adjustment is possible, in any plane, OLP series antennas operating below 300MHz are also supplied in a kit form for compactness in packaging and ease of transportation. Antennas in the kit form assemble easily with minimum tool requirements. Standard tripod will be provided according to customers' requirement, the joint is universal.

E-mail:sales@oceanmicrowave.com

PN.	Frequency (MHz)	VSWR (Typ.)	Gain (Typ) (dBi)	3dB beamwidth （degree）	Polarization	Connector	Size （L×W）mm	Datasheet
Log periodic antenna LP1050	100-500	2:1	6	120-50	Linear	N	2600×1800
Log periodic antenna OLP1080	100-800	3:1	6	120-50	Linear	N	2600×1800
Log periodic antenna OLP10100	100-1000	3:1	6	120-50	Linear	N	2600×1800
Log periodic antenna OLP1350	130-500	3:1	6	120-50	Linear	N	2300×1350
Log periodic antenna OLP18100	180-1000	3:1	6	120-50	Linear	N	1300×900
Log periodic antenna OLP18200	180-2000	3:1	6	120-50	Linear	N	1300×900
Log periodic antenna OLP2080	200-800	3:1	7	120-50	Linear	N	1250×860
Log periodic antenna OLP20200	200-2000	3:1	7	120-50	Linear	N	1250×860
Log periodic antenna OLP25100	250-1000	2.5:1	7	120-50	Linear	N	1055×680
Log periodic antenna OLP30200	300-2000	3:1	6	120-50	Linear	N	900×560
Log periodic antenna OLP40200	400-2000	2.5:1	6	120-50	Linear	N	800×410
Log periodic antenna OLPS50300	500-3000	3:1	6	120-50	Linear	N	600×350
Log periodic antenna OLP80500	800～5000	3:1	6	120-50	Linear	N	500×320
Log periodic antenna OLP100400	1000-4000	3:1	6	120-50	Linear	N	450×220
Log periodic antenna OLP100600	1000-6000	3:1	6	120-50	Linear	N	450×220
