SMA Series Field Replaceable Flange Connectors

Type

P/N

outline

D

VSWR(Max.)

 SMA Series Connectors

D550S12F01
D550S12F01H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

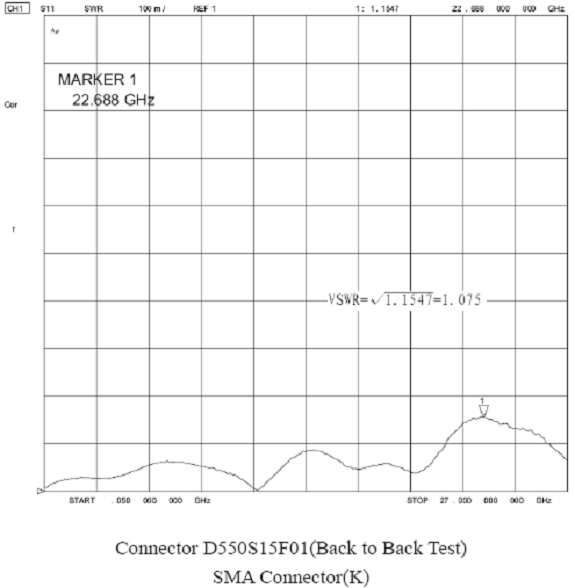

D550S15F01
D550S15F01H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18F01
D550S18F01H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20F01
D550S20F01H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550S12F02
D550S12F02H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15F02
D550S15F02H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18F02
D550S18F02H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20F02
D550S20F02H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

 SMA Series Connectors

D550S12F03
D550S12F03H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15F03
D550S15F03H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18F03
D550S18F03H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20F03
D550S20F03H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

 SMA Series Connectors

D550S12F04
D550S12F04H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15F04
D550S15F04H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18F04
D550S18F04H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20F04
D550S20F04H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

 SMA Series Connectors

D550S12F05
D550S12F05H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15F05
D550S15F05H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18F05
D550S18F05H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20F05
D550S20F05H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550S12F06
D550S12F06H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15F06
D550S15F06H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18F06
D550S18F06H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20F06
D550S20F06H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550S12F07
D550S12F07H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15F07
D550S15F07H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18F07
D550S18F07H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20F07
D550S20F07H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

 SMA Series Connectors

D551S12F02
D551S12F02H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S15F02
D551S15F02H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S18F02
D551S18F02H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S20F02
D551S20F02H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D551S12F03
D551S12F03H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S15F03
D551S15F03H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S18F03
D551S18F03H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S20F03
D551S20F03H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D551S12F04
D551S12F04H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S15F04
D551S15F04H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S18F04
D551S18F04H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S20F04
D551S20F04H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

 SMA Series Connectors

D551S12F05
D551S12F05H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S15F05
D551S15F05H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S18F05
D551S18F05H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S20F05
D551S20F05H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

 SMA Series Connectors

D551S12F06
D551S12F06H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S15F06
D551S15F06H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S18F06
D551S18F06H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S20F06
D551S20F06H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D551S12F07
D551S12F07H

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S15F07
D551S15F07H

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S18F07
D551S18F07H

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D551S20F07
D551S20F07H

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Remove Screw Thread Connector

Type

P/N

outline

D

VSWR(Max.)

SMA Series Connectors

D550S12Y01

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15Y01

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18Y01

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20Y01

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550S12Y02

0.012inch/
0.30mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S15Y02

0.015inch/
0.38mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S18Y02

0.018inch/
0.46mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550S20Y02

0.020inch/
0.51mm

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Bulkhead Flange Connectors

Type

P/N

outline

A

a

B

b

VSWR(Max.)

SMA Series Connectors

D550M01F01

12.7

12.7

8.6

8.6

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M01F02

9.5

9.5

6.35

6.35

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M01F03

12.7

9.5

8.64

5.64

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550M01F04

15.8

-

12.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M01F05

14

-

10.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M01F06

12.7

-

8.9

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M01F07

12.7

-

8.6

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550M02F01

12.7

12.7

8.6

8.6

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M02F02

9.5

9.5

6.35

6.35

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M02F03

12.7

9.5

8.64

5.64

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550M02F04

15.8

-

12.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M02F05

14

-

10.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M02F06

12.7

-

8.9

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550M02F07

12.7

-

8.6

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550P11F01

12.7

12.7

8.6

8.6

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P11F02

9.5

9.5

6.35

6.35

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P11F03

12.7

9.5

8.64

5.64

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550P11F04

15.8

-

12.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P11F05

14

-

10.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P11F06

12.7

-

8.9

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P11F07

12.7

-

8.6

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series connectors

D550P12F01

12.7

12.7

8.6

8.6

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P12F02

9.5

9.5

6.35

6.35

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P12F03

12.7

9.5

8.64

5.64

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550P12F04

15.8

-

12.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P12F05

14

-

10.2

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P12F06

12.7

-

8.9

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

D550P12F07

12.7

-

8.6

-

DC-18G...1.10:1
18GHz-27GHz...1.15:1

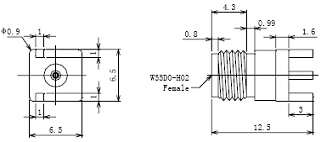

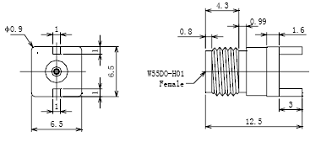

SMA Series PCB Connectors

Type

P/N

outline

VSWR(Max.)

SMA Series connectors

D550BL1F01

DC-18G...1.10:1
18GHz-27GHz...1.15:1

SMA Series Connectors

D550BL1F02

DC-18G...1.10:1
18GHz-27GHz...1.15:1
