Connectors/SSMA Series Connectors

Description

Type

outline

VSWR(Max.)

P/N

N-N(KK)

1

2

DC-18GHz…1.15:1

Z343400Z01

N-N(JK)

3

4

DC-18GHz…1.15:1

Z3434100Z01

P/N

Type

outline

VSWR(Max.)

P/N

N-N(JJ)

5

6

DC-18GHz…1.15:1

Z343411Z01

N-N(KK)

7

8

DC-18GHz…1.15:1

Z343400Y01

N-N(KK)

9

10

DC-18GHz…1.15:1

Z343400F01

Description

Type

outline

VSWR(Max.)

P/N

SMA-SMA(KK)

1

2

DC-27GHz…1.15:1

Z555500Z01

SMA-SMA(JK)

3

4

DC-27GHz…1.15:1

Z555510Z01

SMA-SMA(JJ)

5

6

DC-27GHz…1.15:1

Z555500Z01

Description

Type

outline

VSWR(Max.)

P/N

3.5mm-3.5mm(kk)

1

2

DC-33GHz…1.15:1

Z353500Z01

3.5mm-3.5mm(kk)

3

4

DC-33GHz…1.15:1

Z353510Z01

Description

Type

outline

VSWR(Max.)

P/N

3.5mm-3.5mm(JJ)

5

6

DC-33GHz…1.15:1

Z353511Z01

Description

Type

outline

VSWR(Max.)

P/N

2.92mm-2.92mm(kk)

1

2

DC-40GHz…1.20:1

Z353500Z01

2.92mm-2.92mm(Jk)

3

4

DC-40GHz…1.15:1

Z353510Z01

Description

Type

outline

VSWR(Max.)

P/N

2.92mm-2.92mm(JJ)

5

6

DC-40GHz…1.15:1

Z353511Z01

2.92mm-2.92mm(KK)

7

8

DC-40GHz…1.20:1

Z363600F01

Description

Type

outline

VSWR(Max.)

P/N

2.4mm-2.4mm(kk)

1

2

DC-50GHz…1.20:1

Z373700Z01

2.4mm-2.4mm(Jk)

3

4

DC-40GHz…1.15:1

Z373710Z01

Description

Type

outline

VSWR(Max.)

P/N

2.4mm-2.4mm(JJ)

5

6

DC-40GHz…1.15:1

Z373711Z01

2.4mm-2.4mm(kk)

7

8

DC-40GHz…1.20:1

Z373700F01

Description

Type

outline

VSWR(Max.)

P/N

N-3.5mm(kk)

1

2

DC-18GHz…1.15:1

Z343500Z01

N-3.5mm (Jk)

3

4

DC-18GHz…1.15:1

Z343510Z01

Description

Type

outline

VSWR(Max.)

P/N

N-3.5mm (kJ)

5

6

DC-18GHz…1.15:1

Z343501Z01

N-3.5mm (JJ)

7

8

DC-18GHz…1.15:1

Z343511Z01

Description

Type

outline

VSWR(Max.)

P/N

N-2.92mm(kk)

1

2

DC-18GHz…1.15:1

Z343600Z01

N-2.92mm (Jk)

3

4

DC-18GHz…1.15:1

Z343610Z01

Description

Type

outline

VSWR(Max.)

P/N

N-2.92mm (kJ)

5

6

DC-18GHz…1.15:1

Z343601Z01

N-2.92mm (JJ)

7

8

DC-18GHz…1.15:1

Z343611Z01

Description

Type

outline

VSWR(Max.)

P/N

N-2.4mm(kk)

1

2

DC-18GHz…1.15:1

Z343700Z01

N-2.4mm (Jk)

3

4

DC-18GHz…1.15:1

Z343710Z01

Description

Type

outline

VSWR(Max.)

P/N

N-2.4mm (kJ)

5

6

DC-18GHz…1.15:1

Z343701Z01

N-2.4mm (JJ)

7

8

DC-18GHz…1.15:1

Z343711Z01

Description

Type

outline

VSWR(Max.)

P/N

N-2.4mm(kk)

1

2

DC-18GHz…1.15:1

Z343700Z01

N-2.4mm (Jk)

3

4

DC-18GHz…1.15:1

Z343710Z01

Description

Type

outline

VSWR(Max.)

P/N

N-2.4mm (kJ)

5

6

DC-18GHz…1.15:1

Z343701Z01

N-2.4mm (JJ)

7

8

DC-18GHz…1.15:1

Z343711Z01

Description

Type

outline

VSWR(Max.)

P/N

N-TNC(kk)

1

2

DC-18GHz…1.15:1

Z345400Z01

N- TNC (Jk)

3

4

DC-18GHz…1.15:1

Z345410Z01

Description

Type

outline

VSWR(Max.)

P/N

N- TNC (kJ)

5

6

DC-18GHz…1.15:1

Z345401Z01

N- TNC (JJ)

7

8

DC-18GHz…1.15:1

Z345411Z01



VSWR

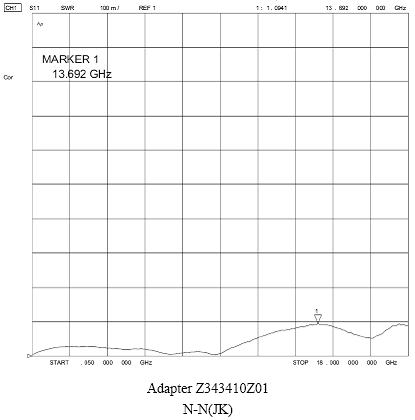

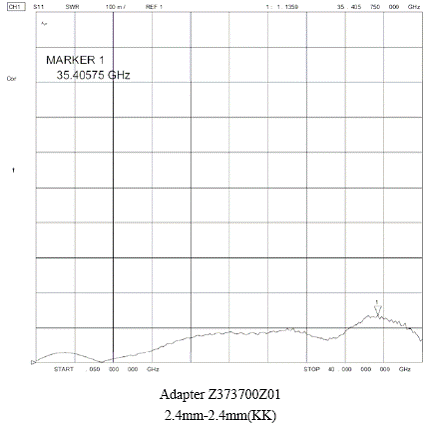

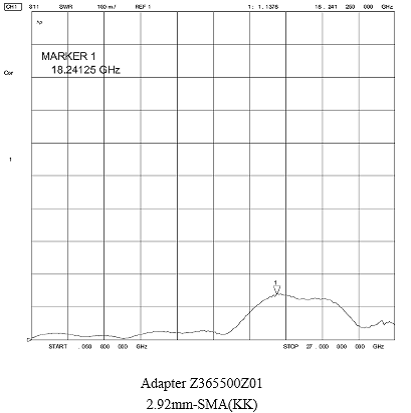

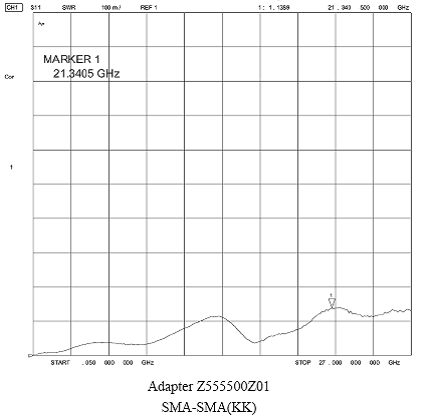

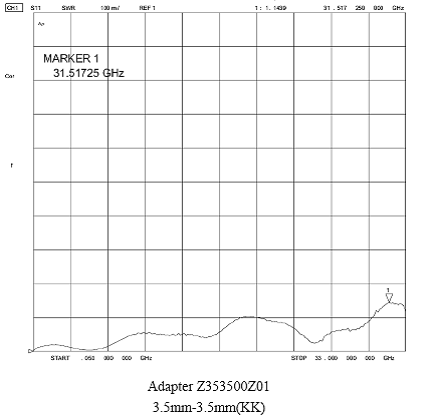

123

4

5
