 定向耦合器 |
|
|
频率（GHz） |
耦合度（dB）Max. |
插损（dB）Max. |
耦合平衡度
(±dB） |
定向性（dB） |
驻波比 |
输入功率(W) |
接口 |
型号 |
0.5-1.0 |
20.0 ± 1.25 |
0.20 |
0.75 |
25 |
1.15:1 |
50 |
SMA |
CS20-01-436/3 |
0.5-1.0 |
20.0 ± 1.25 |
0.20 |
0.75 |
22 |
1.15:1 |
50 |
N |
CS20-01-436/3N |
0.5-2.0 |
20.0 ± 1.00 |
0.35 |
0.75 |
23 |
1.20:1 |
50 |
SMA |
CS20-02-436/1 |
0.5-2.0 |
20.0 ± 1.00 |
0.35 |
0.75 |
20 |
1.20:1 |
50 |
N |
CS20-02-436/1N |
0.8-2.2 |
20.0 ± 1.25 |
0.35 |
0.75 |
23 |
1.20:1 |
50 |
SMA |
CS20-02A-436/3 |
0.8-2.2 |
20.0 ± 1.00 |
0.35 |
0.75 |
20 |
1.20:1 |
50 |
N |
CS20-02A-436/3N |
0.8-2.5 |
20.0 ± 1.25 |
0.40 |
0.70 |
20 |
1.20:1 |
50 |
SMA |
CS20-22-436/3 |
1.0-2.0 |
20.0 ± 1.25 |
0.20 |
0.75 |
25 |
1.10:1 |
50 |
SMA |
CS20-03-436/7 |
1.0-2.0 |
20.0 ± 1.25 |
0.20 |
0.75 |
20 |
1.10:1 |
50 |
N |
CS20-03-436/7N |
1.0-4.0 |
20.0 ± 1.00 |
0.40 |
0.75 |
23 |
1.20:1 |
50 |
SMA |
CS20-04-436/13 |
1.0-4.0 |
20.0 ± 1.00 |
0.40 |
0.75 |
18 |
1.20:1 |
50 |
N |
CS20-04-436/13N |
2.0-4.0 |
20.0 ± 1.25 |
0.20 |
0.75 |
22 |
1.15:1 |
50 |
SMA |
CS20-05-436/10 |
2.0-4.0 |
20.0 ± 1.25 |
0.20 |
0.75 |
18 |
1.15:1 |
50 |
N |
CS20-05-436/11N |
3.6-4.2 |
20.0 ± 1.00 |
0.50 |
0.30 |
15 |
1.40:1 |
50 |
SMA |
CS20-06-435/3 |
3.6-4.2 |
20.0 ± 1.00 |
0.50 |
0.30 |
18 |
1.40:1 |
50 |
N |
CS20-06-436/11N |
2.6-5.2 |
20.0 ± 1.25 |
0.20 |
0.75 |
20 |
1.25:1 |
50 |
SMA |
CS20-07-435/1 |
2.6-5.2 |
20.0 ± 1.25 |
0.20 |
0.75 |
18 |
1.25:1 |
50 |
N |
CS20-07-436/11N |
5.8-6.4 |
20.0 ± 1.00 |
0.50 |
0.30 |
15 |
1.40:1 |
50 |
SMA |
CS20-08-435/1 |
5.8-6.4 |
20.0 ± 1.00 |
0.50 |
0.30 |
18 |
1.40:1 |
50 |
N |
CS20-08-436/11N |
2.0-8.0 |
20.0 ± 1.00 |
0.40 |
0.75 |
20 |
1.25:1 |
50 |
SMA |
CS20-09-436/9 |
2.0-8.0 |
20.0 ± 1.00 |
0.40 |
0.75 |
15 |
1.25:1 |
50 |
N |
CS20-09-436/7N |
4.0-8.0 |
20.0 ± 1.25 |
0.25 |
0.75 |
20 |
1.30:1 |
50 |
SMA |
CS20-10-435/1 |
4.0-8.0 |
20.0 ± 1.25 |
0.25 |
0.75 |
17 |
1.30:1 |
50 |
N |
CS20-10-436/11N |
7.2-8.5 |
20.0 ± 1.00 |
0.50 |
0.30 |
15 |
1.40:1 |
50 |
SMA |
CS20-11-435/1 |
7.2-8.5 |
20.0 ± 1.00 |
0.50 |
0.30 |
15 |
1.40:1 |
50 |
N |
CS20-11-436/11N |
0.5-12.0 |
20.0 ± 1.00 |
1.00 |
0.8 |
15 |
1.50:1 |
25 |
SMA |
CS20-19-436/19 |
4.0-12.4 |
20.0 ± 1.00 |
0.50 |
0.40 |
17 |
1.30:1 |
50 |
SMA |
CS20-14-436/15 |
7.0-12.4 |
20.0 ± 1.00 |
0.30 |
0.50 |
17 |
1.30:1 |
50 |
SMA |
CS20-12-435/1 |
7.0-12.4 |
20.0 ± 1.00 |
0.50 |
0.50 |
15 |
1.30:1 |
50 |
N |
CS20-12-436/11N |
7.5-16.0 |
20.0 ± 1.25 |
0.50 |
0.75 |
15 |
1.40:1 |
50 |
SMA |
CS20-13-435/3 |
7.5-16.0 |
20.0 ± 1.25 |
0.50 |
0.75 |
13 |
1.40:1 |
50 |
N |
CS20-13-436/11N |
0.5-18.0
|
20.0 ± 1.00
|
0.90
|
1.00
|
0.5-12
15 |
12-18
12 |
1.50:1
|
25
|
SMA
|
CS20-23-436/20
|
1.0-18.0
|
20.0 ± 1.00
|
0.80
|
0.50
|
1.0-12
15 |
12-18
12 |
1.50:1
|
25
|
SMA
|
CS20-18-436/16
|
1.0-18.0 |
20.0 ± 1.00 |
0.80 |
0.50 |
15 |
12 |
1.50:1 |
25 |
N |
CS20-18-436/16N |
2.0-18.0
|
20.0 ± 1.00
|
0.60
|
0.50
|
2.0-12
15 |
12-18
12 |
1.40:1
|
50
|
SMA
|
CS20-15-436/13
|
4.0-18.0
|
20.0 ± 1.00
|
0.60
|
0.50
|
4.0-12
15 |
12-18
12 |
1.40:1
|
50
|
SMA
|
CS20-16-436/14
|
12.4-18.0 |
20.0 ± 1.00 |
0.50 |
0.50 |
15 |
1.40:1 |
50 |
SMA |
CS20-17-435/3 |
12.4-18.0 |
20.0 ± 1.00 |
0.50 |
0.50 |
12 |
1.40:1 |
50 |
N |
CS20-17-436/11N |
8.0-20.0 |
20.0 ± 1.00 |
1.00 |
0.80 |
12 |
1.50:1 |
25 |
SMA |
CS20-21-435/3 |
6.0-26.5 |
20.0 ± 1.00 |
0.70 |
0.80 |
13 |
1.55:1 |
20 |
SMA |
CS20-50-435/4 |
Outline 435

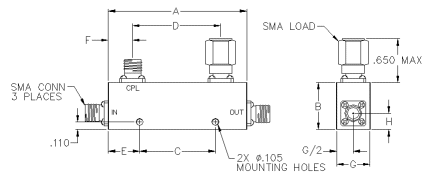

Outline 436
Outline 436/N

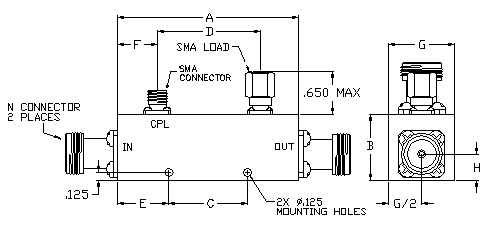

Outline 436/NS
Outline |
Conn. |
A |
B |
C |
D |
E |
F |
G |
H |
435/1 |
SMA |
1.00 |
.50 |
-- |
0.50 |
.50 |
-- |
.40 |
.215 |
435/3 |
SMA |
1.00 |
.60 |
-- |
0.50 |
.50 |
-- |
.40 |
.240 |
435/4 |
SMA |
1.06 |
.625 |
-- |
0.50 |
.50 |
-- |
.40 |
.240 |
436/1 |
SMA |
3.60 |
.54 |
2.60 |
3.10 |
.50 |
.25 |
.38 |
.220 |
436/2 |
SMA |
3.60 |
.54 |
2.60 |
3.10 |
.50 |
.25 |
.38 |
.220 |
436/3 |
SMA |
3.10 |
.55 |
1.50 |
2.60 |
.80 |
.25 |
.40 |
.240 |
436/7 |
SMA |
1.78 |
.50 |
0.94 |
1.28 |
.42 |
.25 |
.38 |
.220 |
436/9 |
SMA |
1.81 |
0.67 |
0.87 |
1.27 |
0.47 |
.27 |
0.40 |
.24 |
436/10 |
SMA |
1.20 |
.54 |
0.34 |
0.65 |
.43 |
.27 |
.40 |
.240 |
436/11 |
SMA |
1.20 |
.59 |
0.34 |
0.65 |
.43 |
.27 |
.40 |
.240 |
436/13 |
SMA |
2.20 |
.70 |
1.00 |
1.70 |
.60 |
.27 |
.40 |
.240 |
436/14 |
SMA |
1.36 |
.66 |
0.50 |
0.86 |
.43 |
.25 |
.40 |
.240 |
436/15 |
SMA |
1.22 |
.60 |
0.38 |
0.72 |
.42 |
.25 |
.40 |
.240 |
436/16 |
SMA |
3.51 |
.70 |
2.00 |
2.93 |
.76 |
.30 |
.40 |
.240 |
436/19 |
SMA |
5.50 |
.75 |
4.00 |
4.86 |
.75 |
.31 |
.40 |
.240 |
436/20 |
SMA |
4.40 |
.70 |
2.50 |
3.90 |
.95 |
.25 |
.40 |
.250 |
|
|
|
|
|
|
|
|
|
|
436/1N* |
N |
4.00 |
1.00 |
2.50 |
3.10 |
.750 |
.50 |
1.00 |
.500 |
436/3N* |
N |
3.50 |
1.00 |
1.50 |
2.60 |
.100 |
.50 |
1.00 |
.500 |
436/7N* |
N |
2.25 |
1.00 |
1.00 |
1.34 |
.630 |
.45 |
1.00 |
.500 |
436/9N* |
N |
2.25 |
1.00 |
1.00 |
1.38 |
.625 |
.44 |
1.00 |
.500 |
436/11N* |
N |
1.50 |
1.00 |
0.75 |
0.65 |
.380 |
.45 |
1.00 |
.500 |
436/13N* |
N |
2.60 |
1.00 |
1.00 |
1.70 |
.800 |
.45 |
1.00 |
.500 |
436/15N* |
N |
1.50 |
1.00 |
0.75 |
0.72 |
.380 |
.39 |
1.00 |
.500 |
436/16N* |
N |
3.80 |
1.00 |
2.00 |
2.93 |
.850 |
.60 |
1.00 |
.500 |
436/19N* |
N |
5.63 |
1.00 |
4.00 |
4.86 |
.810 |
.38 |
0.80 |
.500 |
|
